Cadillac takes drive modes simply too far
While continuing the update of Cadillac symbols, we found ourselves adding two new drive modes. In fact we added two new snow and ice mode symbols in use in different models at the same time!

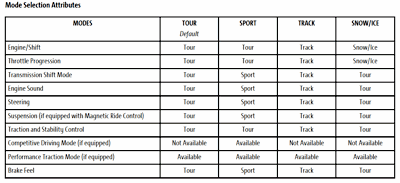

In examining this, we came across a table in the CT4 owner’s manual that shows all of the drive mode variations available to the driver. Have a look below.
It isn’t immediately obvious — and its a little hard to read — but there are at least 10 different modes available affecting everything from traction and transmission to throttle and suspension response. And our table now includes 15 distinct symbols that may appear in a Cadillac message center or instrument panel associated with drive modes.
The Cadillac symbols page can be seen here.
——————————————————————-
